SQL Server Index Defragmentation Jobs


The Scheduled Jobs tab of the Index Maintenance dashboard enables you create automated jobs that will defragment your indexes. These jobs are highly configurable to target individual databases or tables, indexes that pass certain conditions and stop if they go for too long or consume too much resource.

Job List

The top grid is a list of jobs (miniDBA comes with 3 as default - you can add to this list). Clicking on a job will display it's properties in the lower half of the dashboard. This is where you will configure the jobs to behave as you require.
Right clicking these jobs gives you the options to run, cancel or delete them.
Below is a screenshot of the Scheduled Jobs tab:
SQL Server index maintenance jobs

Job Properties

The following properties can be set for each defragment job:

Name

Give your job a name that describes either when it runs and/or what server/database it runs on.

Schedule

As shown in the above screenshot - on the right of the properties pane the schedule options are displayed. Select either a daily, weekly or monthly schedule. Depending on which you select you will be able to select day of the week or month and also the start time of the defrag job.
The maximum duration option lets you specify if the job should stop after a certain amount of minutes. This is useful when there is only a certain maintenance window to get all jobs complete within. Leaving this blank puts no time limit on the job.

Databases Selected

Use the object explorer at the left of the screen to select the databases to include in this job.
SQL Server index maintenance database
A summary is shown on the right of the screen when you click the "Databases Selected" link:
SQL Server index database summary

Stop Conditions

Index defragmenting can consume large amounts of SQL Server resources such as cpu and memory. If you want your job to stop running before it completes due to the job using too many of your SQL Servers resources then use the properties here.

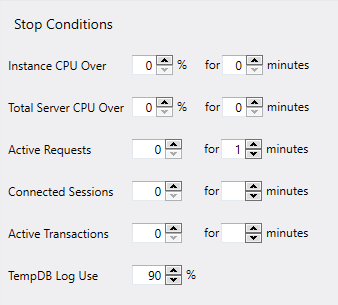

SQL Server index maintenance job stop conditions
As well as selecting which resource will cause a job stop the right column has an optional number of minutes that the resource has to be above it's threshold to cause a job stop. Leaving this blank or 0 will cause it to be ignored and the job will stop as soon as the resource hits its specified threshold.

Action

Set thresholds for when to reorganize and when to rebuild indexes here. Sort in tempdb and online rebuild can be selected and are used where appropriate.
Run analysis after defrag option is used to report on the index fragmentation levels after the defragmentation has occurred. The post fragmentation level is displayed in the jobs log.
SQL Server index rebuild or reorganize

Job History

Previous executions of the job are displayed here. Clicking on a row in the grid will open the log and you can see exactly what work was performed.

SQL Server index job history
